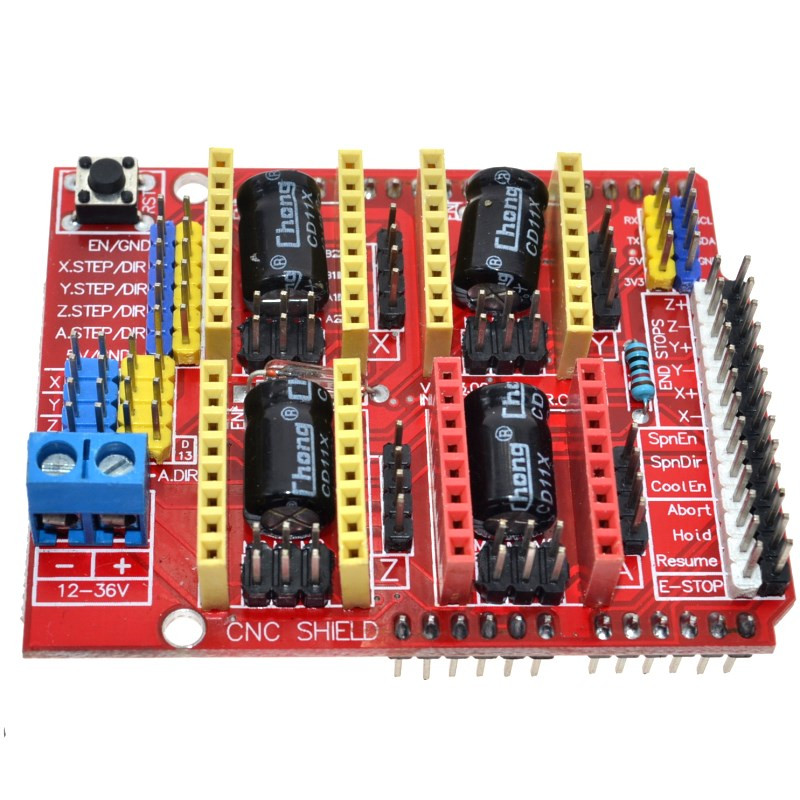

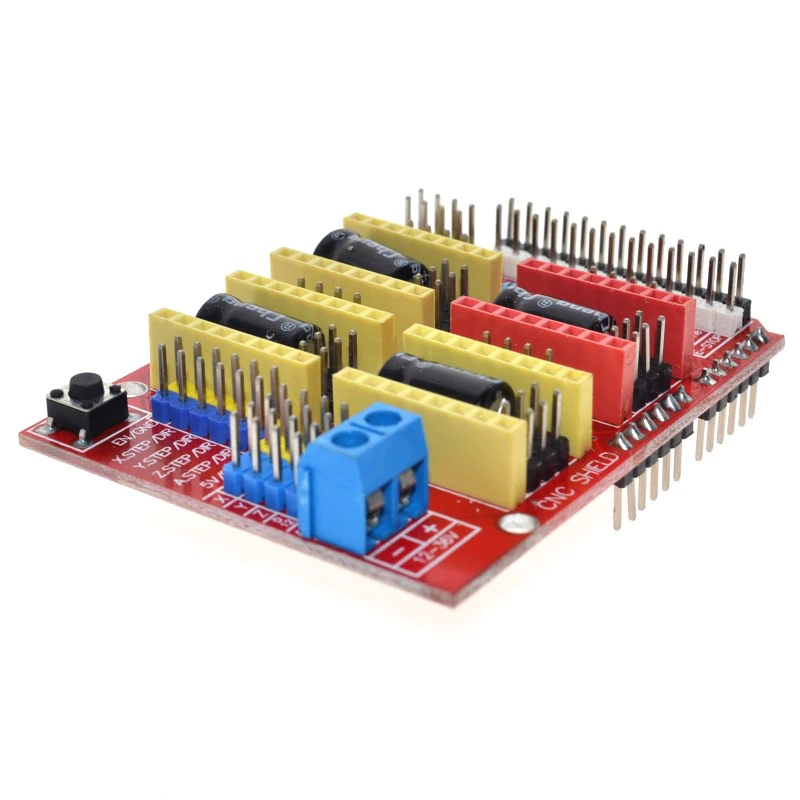

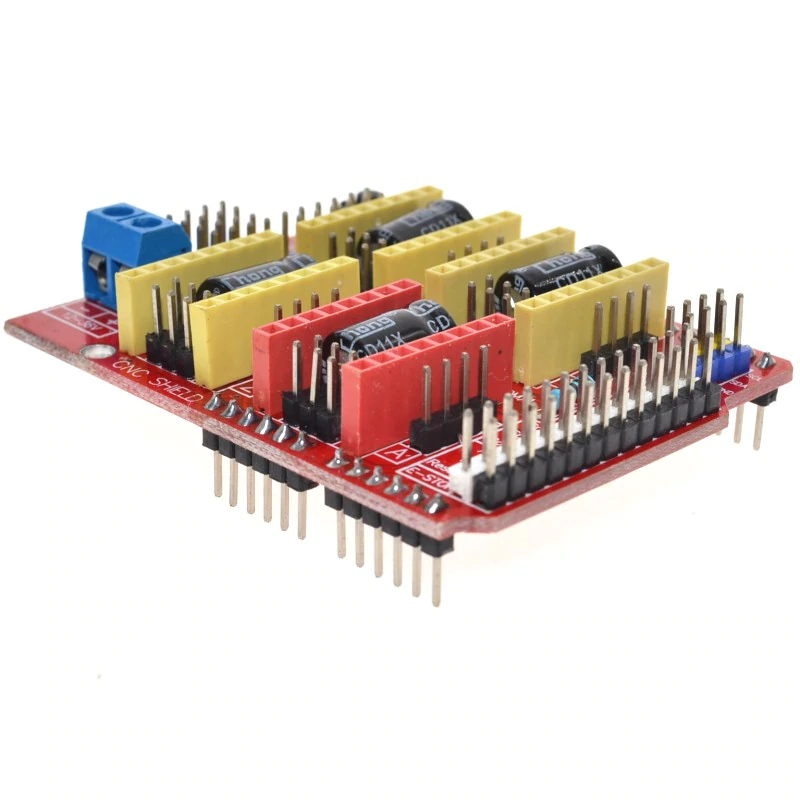

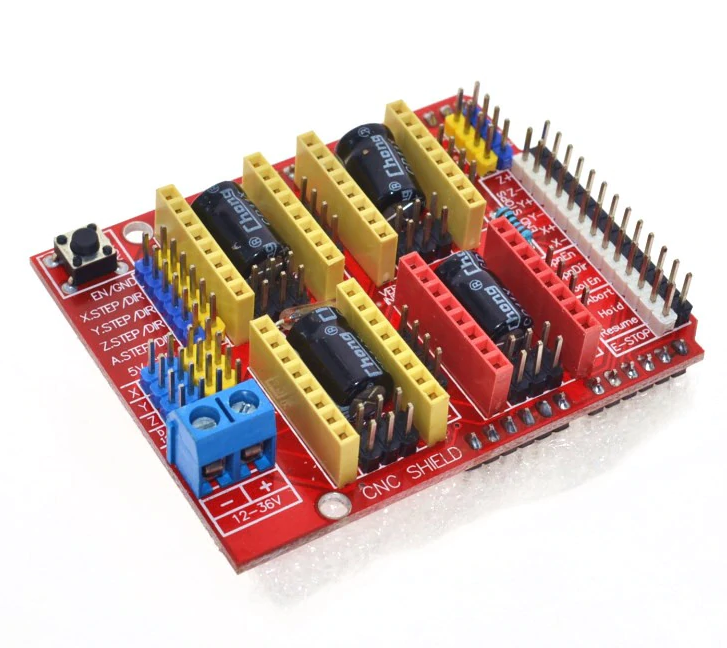

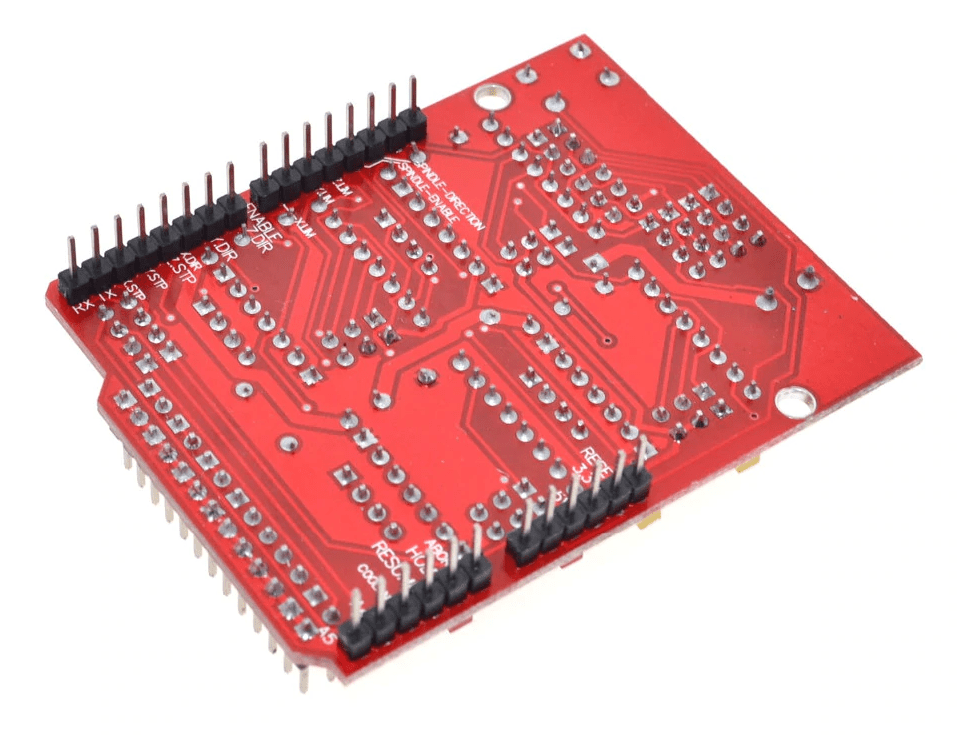

CNC shield V3 for Engraving Machine 3D Printer
₹150.00₹350.00 (-57%)
Specification:
- Latest Arduino CNC Shield Version 3.10
- GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
- PWM Spindle and direction pins
- 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
- 2 x End stops for each axis (6 in total)
This expansion board as a driver expansion board, can be used for engraving machines, 3d printers it is a total of four slots, can drive four a4988 stepper motor.It uses opensource firmware on Arduino to control 4 stepper motors using 4 A4988 Stepper drivers,, with this shield and the Arduino you can build all kinds of robotics or CNC projects including CNC routers, laser cutters and even pick and place machines.
